With an extensive inventory of tooling, we are able to offer short lead times, helping to reduce your time to market.

In addition to what is shown below, we have an extensive inventory of dies available; if your part needs tooling that is not listed, please note this on your quote request and we will work with you to identify the best tooling for the project.

We have a tool and die shop on premises and can create new tooling as needed.

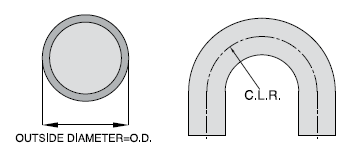

TUBE O.D. PIPE SIZE CENTERLINE RADIUS ( C.L.R.)
.25”   .75”, 1.25”, 2”
.3125”   1.0625”, 1.25”, 1.5625”
.375”   .437”, .609”, .9375”, 1”, 1.125”, 1.25”, 1.3125”, 1.625”, 1.875”
.405” 1/8” 2.21875”
.5”   .75”, .901”, 1”, 1.25”, 1.5”, 1.75”, 2”, 2.25”, 2.406”, 2.5”, 2.6875”, 3”, 4”, 6.25”
.54” 1/4” 1.5”, 1.75”, 2.5”
.5625”   1.5”, 1.625”, 2.25”, 2.5”, 5”
.625”   .75”, .844”, .944”, 1.125”, 1.1875”, 1.25”, 1.375”, 1.5”, 1.5625”, 1.65”, 1.75”, 1.875”, 2”, 2.25”, 2.28125”, 2.3”, 2.5”, 3”, 3.03125”, 3.125”, 4”, 4.3”, 5.125”, 9.75”
.675” 3/8” 5”, 2”, 2.25”, 2.5”, 3”
.6875”   2.5”, 3.5”
.75”   .75”, .8125”, 1”, 1.05”, 1.125”, 1.25”, 1.375”, 1.4375”, 1.5”, 1.625”, 1.75”, 1, 1.823”, 1.9375”, 2”, 2.25”, 2.375”, 2.5”, 2.625”, 2.75”, 3”, 3.5”, 3.75”, 4”, 4.6”, 4.75”, 4.875”, 6.375”
.84” 1/2” 1.188”, 2”, 2.5”, 3.937”
.875”   .9375”, 1”, 1.125”, 1.25”, 1.469”, 1.5”, 1.75”, 1.9765”, 2”, 2.125”, 2.13875”,
2.25”, 2.5”, 2.6875”, 3”, 3.06”, 3.5”, 3.75”, 3.875”, 4.25”
1”    1”, 1.192”, 1.3125”, 1.5”, 1.6715”, 1.969”, 2”, 2.25”, 2.5”, 2.625”, 2.75”, 3”,
3.25”, 3.5”, 3.75”, 3.8125”, 4”, 4.5”, 5”, 6”, 7.5”, 7.75”, 10.25”
1.05” 3/4” 1.125”, 1.5”, 2.25”, 2.5”, 2.875”, 3.75”, 4.375”, 4.5”, 5.25”, 9”
1.125”   1.5”, 2”, 2.125”, 2.25”, 2.3125”, 2.5”, 2.75”, 3”, 3.5”, 4.5”, 6.25”
1.25”   1.75”, 2”, 2.25”, 2.5”, 2.75”, 3”, 3.5”, 3.625”, 3.75”, 4”, 4.5”, 4.875”, 5.125”, 5.25”, 6”
1.315” 1” 1.5”, 2”, 2.5”, 3”, 3.5”, 4”, 5”, 6”, 6.625”, 6.75”, 7.5”, 8.5”
1.375”   1.5”, 1.75”, 2”, 2.5”, 3”, 3.5”, 3.75”, 4”, 4.843”, 5”
1.5”   1.5”, 1.625”, 1.75”, 2”, 2.187”, 2.25”, 2.5”, 2.75”, 2.95”, 3”, 3.5”, 3.95”, 4”, 4.625”, 4.75”, 5”, 6”, 7.125”, 7.25”, 8.6”, 10”
1.625”   2”, 2.375”, 2.5”, 2.8125”, 3”, 3.5”, 4”, 4.25”, 4.5”, 5.875”, 7”, 7.5”, 8.78”
1.66”   2”, 2.5”, 2.6875”, 3”, 3.5”, 4”, 4.5”, 5”, 6”, 7”, 8”, 8.875”, 9”, 12”
1.75”   1.75”, 2.5”, 2.75”, 2.937”, 3”, 3.5”, 3.9375”, 4”, 4.125”, 4.25”, 5.5”, 5.9375”, 6”, 7”, 8”
1.875”   2.125”, 2.45”, 2.5”, 5”, 5.5”, 6.875”
1.9”   2”, 2.5”, 3”, 3.5”, 3.875”, 4”, 4.5”, 5”, 5.625”, 5.75”, 5.875”, 5.9375”, 6”, 7”, 8”, 9”
2”   2.25”, 2.5”, 2.875”, 2.9375”, 3”, 3.125”, 3.4375”, 3.5”, 4”, 4.4375”, 4.5”, 5”, 6”, 7”, 7.875”, 8”, 8.065”, 9.5625”, 11.375”, 12”, 13.375”, 15.5”
2.125”   3”, 3.8125”, 3.9375”, 4”, 5.875”, 6”, 8.625”
2.25”   1.05”, 3.5”, 4”, 4.4375”, 4.75”, 6.5”, 7.25, 7.625”, 17.625”
2.375”  2” 2.625”, 3”, 3.75”, 4”, 4.187”, 4.875”, 5.125”, 5.75”, 6”, 6.875”, 7.125”, 7.25”, 8.5”, 9.375”, 10”, 10.625”, 11.5”, 12”
2.5”   2.5”, 3.75”, 4”, 4.875”, 5”, 5.25”, 5.5”, 6”, 6.25”, 6.5”, 6.625”, 9.125”, 9.25”,
12”, 13”
2.75”   3.875”, 4.5”, 5”, 6”, 8.25”
2.875”   3.5”, 3.875”, 4.875”, 5”, 8”, 9.75”, 10”, 12”, 13.125”
3”   3”, 3.562”, 4”, 4.5”, 5”, 6”, 6.5”, 7.875”, 9”, 9.5”, 9.75”, 100.5”, 12”, 15.75”, 16”, 18.5”
3.25”   4.5”, 5”
3.375”   3.5”, 4”
 3.5”  3” 5”, 6”, 8.5”, 8.812”, 10.5”, 12.25”, 14.625”
4”   4”, 4.25”, 6”, 8.875”, 11.875”, 12”, 15.75”, 15.875”, 16”, 18”
4.25”   9.625”, 12.75”
4.5”   4.5”, 5.5”, 6”, 9”, 11.875”, 12”, 13.375”, 13.5”, 20”
5”   6”
5.25”   15.68”
5.5”   .5”, 15.5”



CUSTOM ROLLING CAPABILITIES FOR LARGE RADII

For large radii we offer custom rolling services. We can roll up to 4-1/2” O.D. and radii from 10 times the outside diameter and larger. Two of Sharpe’s CNC
bending machines have tube generation capabilities. This means that we can apply bends and rolls to one piece of material without changing machines.
