Tube Laser Cutting

THE RIGHT TECHNOLOGY FOR THE RIGHT CUT

Learn About Tube Laser Cutting

Inline Tube Laser Cutting

With powerful, 4 kW inline fiber-optic tube laser cutting systems, we can cut round, square, and rectangle material, (including open profiles), up to 6-inch OD, and can handle angled cuts on multiple sides or edges. With a robust operating system, this equipment can create slots, notches, copes and custom hole patterns.

Multi-Axis System For Complex Shapes

Our multi-axis, 3 kW laser cutting system is built for cutting complex, three-dimensional part profiles. This equipment is ideal for tube laser cutting projects where, because of tolerances required or the location of the cutouts on the tube, parts require additional post-bending operations such as machining or punching. This technology can reduce or eliminate these types of additional steps and cut the cost of consumable tooling. With robotic part handling and dual access loading capabilities, workflow is efficient.

Equipment For Most any Feature

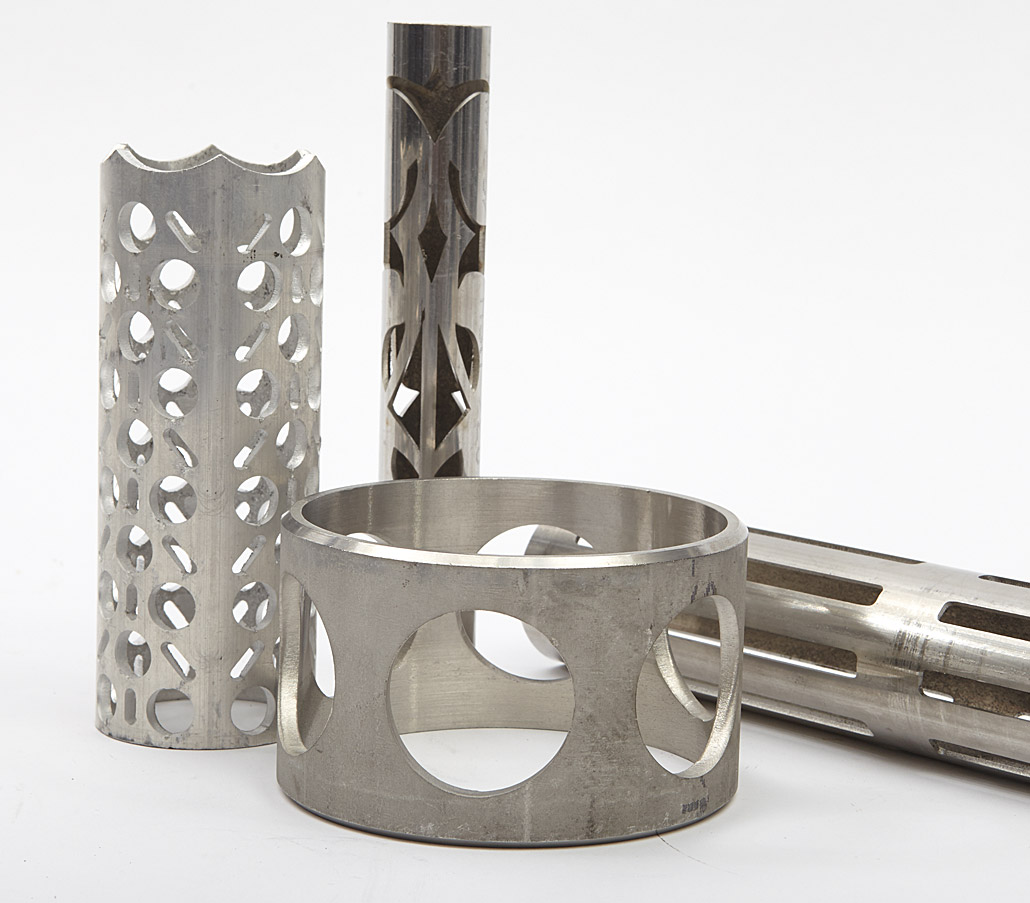

Fiber-optic tube laser cutting is an ideal method for creating shapes or “features” on the body or edges of round, square or rectangular tube or pipe. For medium to high volumes, this technique offers precision, speed and flexibility. Use of a laser also offers the advantage of being able to cut or etch different shapes in metal tube or pipe that would be difficult if not impossible with a traditional vertical mill or drill press.

For a quick quote on your project, please submit your request using the orange prompt (below).

Materials and sizes:

Steel, stainless steel, aluminum (up to 3/8" thick), copper, bronze, brass, galvanized pipe
Round pipe or tube (up to 6" O.D.)
Square pipe or tube (up to 6")
Rectangle tube (up to 6")
Thin-walled tube (from ½" to 4¾" O.D.)
Flat sheets in a variety of thicknesses ranging from .03" to .80"

Advantages of tube laser cutting:

There are several advantages to tube laser cutting, among them speed and efficiency. Edges are cleaner, eliminating lengthy deburring or other finishing operations. Use of tube laser cutting allows for minimal part handling during production, helping to increase throughput for coping, drilling, etching, notching, punching or slotting.

For information, please refer to our list of the tube laser cutting machine technology we use in our facilities.

Consider this:

Fiber-optic technology can accommodate a wide range of applications, here are some examples:

Handrail and Ornamental Applications – coped ends, holes and cut-offs. Or, geometric features and patterns.
Copper Tube – copper tube can be easily cut with our fiber-optic tube laser. Brass and bronze are also possible.
Aluminum Tube – we are able to cut up to over 3/8" thick with our tube laser.
Rectangle and Square Tube – our capacity to cut both square and circular pipe and tube provides both the flexibility for complex or custom projects.

Would you like an estimate?

Just as you strive to remain competitive in your industry, we work hard to stay on top of ours. When you request laser-cutting services from Sharpe Products, your project will be completed in the most efficient manner to achieve quality results. For inquiries, please supply your project details using our RFQ form to the right.

Request a Quote

For an estimate, please click here.

Request a Quote

About us

Sharpe Products is the leader in industrial and commercial tube and pipe bending, laser tube cutting and custom fabrication, with the machine technology and expertise to meet the needs of your project.
